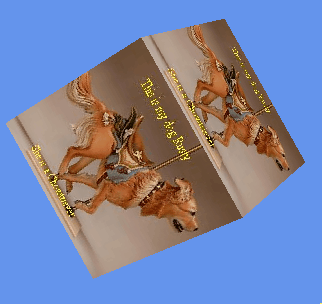

'spinning cube directx 9c example
Option Strict On
Imports Microsoft.DirectX               'C:\Windows\assembly\GAC\Microsoft.DirectX\1.0.2902.0__31bf3856ad364e35\Microsoft.DirectX.dll
Imports Microsoft.DirectX.Direct3D      'C:\Windows\assembly\GAC\Microsoft.DirectX.Direct3D\1.0.2902.0__31bf3856ad364e35\Microsoft.DirectX.Direct3D.dll

Public Class Form1
    Private device As Device = Nothing
    Private vb As VertexBuffer = Nothing
    Private tex1 As Texture = Nothing
    Private angle As Single = 0.0F

    Private Sub Form1_Load(sender As System.Object, e As System.EventArgs) Handles MyBase.Load
        Me.SetStyle(ControlStyles.AllPaintingInWmPaint Or ControlStyles.Opaque, True)
        Me.ClientSize = New Size(400, 400)

        InitializeGraphics()
    End Sub

    Public Sub InitializeGraphics()
        'create the directx graphics device
        Dim presentParams As New PresentParameters()
        presentParams.Windowed = True
        presentParams.SwapEffect = SwapEffect.Discard

        device = New Device(0, DeviceType.Hardware, Me, CreateFlags.SoftwareVertexProcessing, presentParams)

        'create the object data
        vb = New VertexBuffer(GetType(CustomVertex.PositionTextured), 36, device, Usage.Dynamic Or Usage.WriteOnly, CustomVertex.PositionTextured.Format, Pool.Default)
        AddHandler vb.Created, AddressOf Me.OnVertexBufferCreate
        OnVertexBufferCreate(vb, Nothing)

        'read the texture image - add the path to your own image
        tex1 = New Texture(device, New Bitmap("c:\bitmaps\rusty.bmp"), Usage.Dynamic, Pool.Default)
    End Sub

    Protected Overrides Sub OnPaint(e As System.Windows.Forms.PaintEventArgs)
        device.Clear(ClearFlags.Target, Color.CornflowerBlue, 1.0F, 0)

        'Setup Camera
        device.Transform.Projection = Matrix.PerspectiveFovLH(Math.PI / 4, CSng(Me.Width / Me.Height), 1.0F, 100.0F)
        device.Transform.View = Matrix.LookAtLH(New Vector3(0, 0, 8.0F), New Vector3(), New Vector3(0, 1, 0))
        device.RenderState.Lighting = False

        'begin drawing
        device.BeginScene()
        device.VertexFormat = CustomVertex.PositionTextured.Format
        device.SetStreamSource(0, vb, 0)

        'draw the rotating cube
        angle += 0.01F
        Dim yaw As Single = CSng(angle / Math.PI)
        Dim pitch As Single = CSng(2 * angle / Math.PI)
        Dim roll As Single = CSng(4 * angle / Math.PI)
        Dim x, y, z As Single

        'set the local rotation and location
        device.Transform.World = Matrix.Multiply(Matrix.RotationYawPitchRoll(yaw, pitch, roll), Matrix.Translation(x, y, 3))
        'assign the image to the triangles
        device.SetTexture(0, tex1)
        'add the triangles that make the cube
        device.DrawPrimitives(PrimitiveType.TriangleList, 0, 12)

        device.EndScene()
        device.Present()

        'create infinate loop
        Me.Invalidate()
    End Sub

    Private Sub OnVertexBufferCreate(sender As Object, e As EventArgs)
        Dim buffer As VertexBuffer = CType(sender, VertexBuffer)
        Dim verts(35) As CustomVertex.PositionTextured

        ' Front face
        verts(0) = New CustomVertex.PositionTextured(-1.0F, 1.0F, 1.0F, 0.0F, 0.0F)
        verts(1) = New CustomVertex.PositionTextured(-1.0F, -1.0F, 1.0F, 0.0F, 1.0F)
        verts(2) = New CustomVertex.PositionTextured(1.0F, 1.0F, 1.0F, 1.0F, 0.0F)
        verts(3) = New CustomVertex.PositionTextured(-1.0F, -1.0F, 1.0F, 0.0F, 1.0F)
        verts(4) = New CustomVertex.PositionTextured(1.0F, -1.0F, 1.0F, 1.0F, 1.0F)
        verts(5) = New CustomVertex.PositionTextured(1.0F, 1.0F, 1.0F, 1.0F, 0.0F)

        ' Back face (remember this is facing *away* from the camera, so vertices should be clockwise order)
        verts(6) = New CustomVertex.PositionTextured(-1.0F, 1.0F, -1.0F, 0.0F, 0.0F)
        verts(7) = New CustomVertex.PositionTextured(1.0F, 1.0F, -1.0F, 1.0F, 0.0F)
        verts(8) = New CustomVertex.PositionTextured(-1.0F, -1.0F, -1.0F, 0.0F, 1.0F)
        verts(9) = New CustomVertex.PositionTextured(-1.0F, -1.0F, -1.0F, 0.0F, 1.0F)
        verts(10) = New CustomVertex.PositionTextured(1.0F, 1.0F, -1.0F, 1.0F, 0.0F)
        verts(11) = New CustomVertex.PositionTextured(1.0F, -1.0F, -1.0F, 1.0F, 1.0F)

        ' Top face
        verts(12) = New CustomVertex.PositionTextured(-1.0F, 1.0F, 1.0F, 0.0F, 0.0F)
        verts(13) = New CustomVertex.PositionTextured(1.0F, 1.0F, -1.0F, 1.0F, 1.0F)
        verts(14) = New CustomVertex.PositionTextured(-1.0F, 1.0F, -1.0F, 0.0F, 1.0F)
        verts(15) = New CustomVertex.PositionTextured(-1.0F, 1.0F, 1.0F, 0.0F, 0.0F)
        verts(16) = New CustomVertex.PositionTextured(1.0F, 1.0F, 1.0F, 1.0F, 0.0F)
        verts(17) = New CustomVertex.PositionTextured(1.0F, 1.0F, -1.0F, 1.0F, 1.0F)

        ' Bottom face (remember this is facing *away* from the camera, so vertices should be clockwise order)
        verts(18) = New CustomVertex.PositionTextured(-1.0F, -1.0F, 1.0F, 0.0F, 0.0F)
        verts(19) = New CustomVertex.PositionTextured(-1.0F, -1.0F, -1.0F, 0.0F, 1.0F)
        verts(20) = New CustomVertex.PositionTextured(1.0F, -1.0F, -1.0F, 1.0F, 1.0F)
        verts(21) = New CustomVertex.PositionTextured(-1.0F, -1.0F, 1.0F, 0.0F, 0.0F)
        verts(22) = New CustomVertex.PositionTextured(1.0F, -1.0F, -1.0F, 1.0F, 1.0F)
        verts(23) = New CustomVertex.PositionTextured(1.0F, -1.0F, 1.0F, 1.0F, 0.0F)

        ' Left face
        verts(24) = New CustomVertex.PositionTextured(-1.0F, 1.0F, 1.0F, 0.0F, 0.0F)
        verts(25) = New CustomVertex.PositionTextured(-1.0F, -1.0F, -1.0F, 1.0F, 1.0F)
        verts(26) = New CustomVertex.PositionTextured(-1.0F, -1.0F, 1.0F, 1.0F, 0.0F)
        verts(27) = New CustomVertex.PositionTextured(-1.0F, 1.0F, -1.0F, 0.0F, 1.0F)
        verts(28) = New CustomVertex.PositionTextured(-1.0F, -1.0F, -1.0F, 1.0F, 1.0F)
        verts(29) = New CustomVertex.PositionTextured(-1.0F, 1.0F, 1.0F, 0.0F, 0.0F)

        ' Right face (remember this is facing *away* from the camera, so vertices should be clockwise order)
        verts(30) = New CustomVertex.PositionTextured(1.0F, 1.0F, 1.0F, 0.0F, 0.0F)
        verts(31) = New CustomVertex.PositionTextured(1.0F, -1.0F, 1.0F, 1.0F, 0.0F)
        verts(32) = New CustomVertex.PositionTextured(1.0F, -1.0F, -1.0F, 1.0F, 1.0F)
        verts(33) = New CustomVertex.PositionTextured(1.0F, 1.0F, -1.0F, 0.0F, 1.0F)
        verts(34) = New CustomVertex.PositionTextured(1.0F, 1.0F, 1.0F, 0.0F, 0.0F)
        verts(35) = New CustomVertex.PositionTextured(1.0F, -1.0F, -1.0F, 1.0F, 1.0F)

        buffer.SetData(verts, 0, LockFlags.None)
    End Sub
End Class
